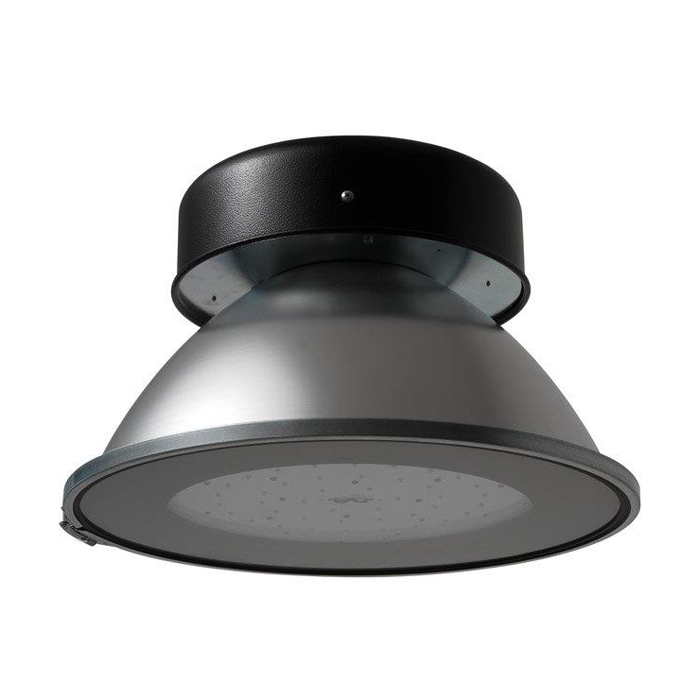

SOLE

Suspend fixture made in anodised and polished aluminum sheet.

Description
Highbay die-cast aluminum fixture with epoxy powder coating.      Aluminum heatsink
Tempered glass diffuser.                                                                           Stainless steel screws.

Insulation Class  : I – II                                                                                  Protection degree : IP65.

280 chip led  with symmetrical lenses.                                             Dimmerable electronic driver 120  Vdc 350-700 mA C.C. 220/240 V, 50-60 Hz.

Standard power: 80 -115 -165 W.

Temperature degrees: 3000K – 4000K – 5000K.

CRI> 80

Scheda Tecnica

file dwg

files ldt
